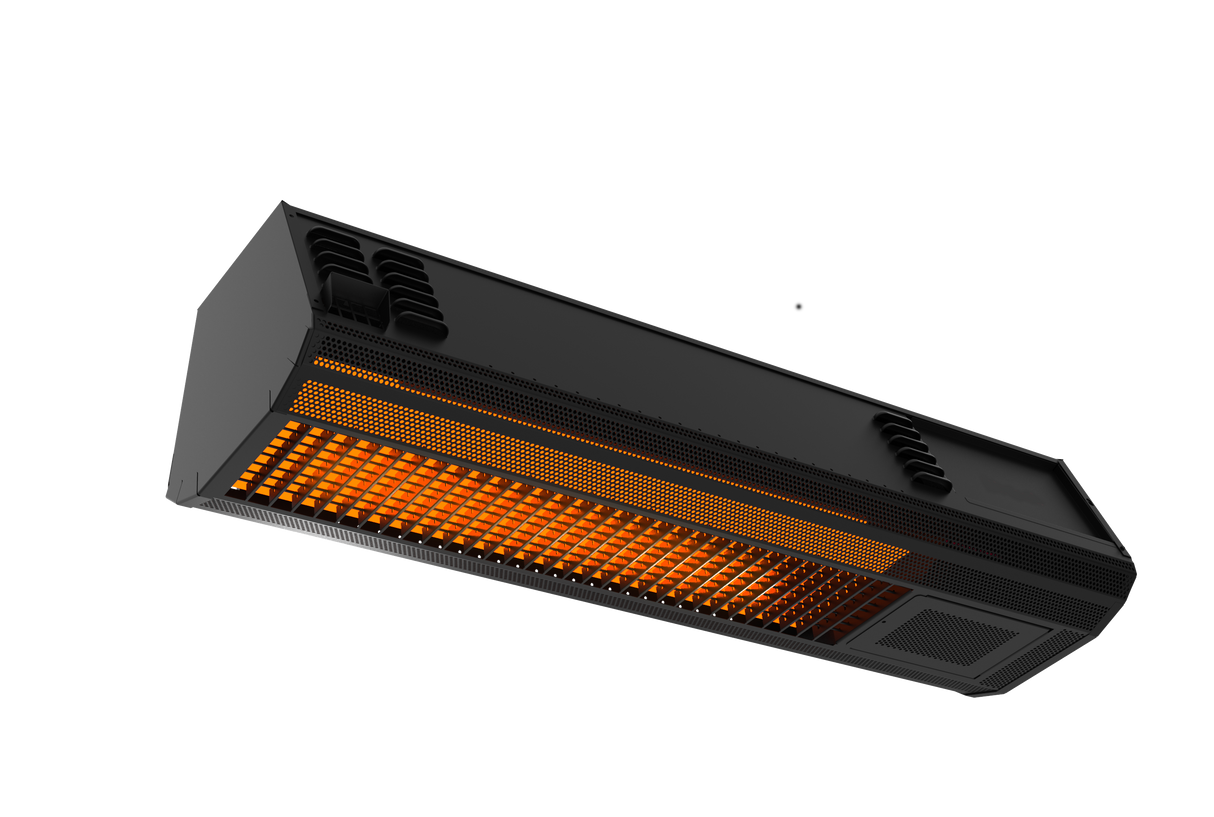

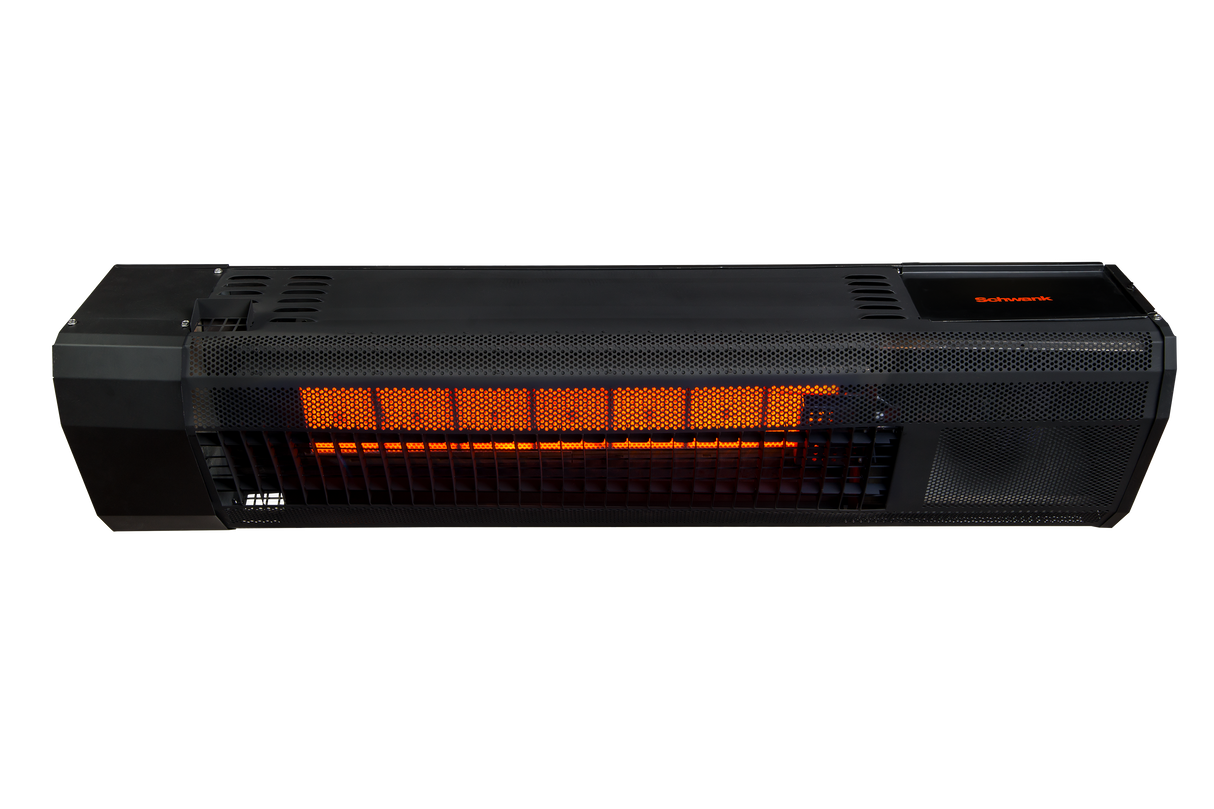

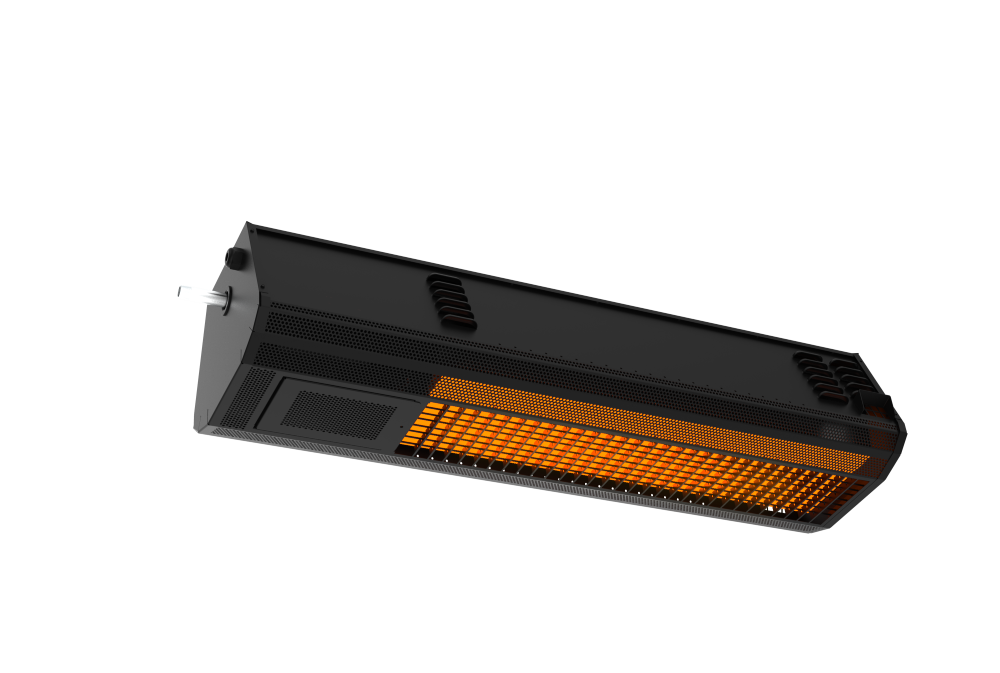

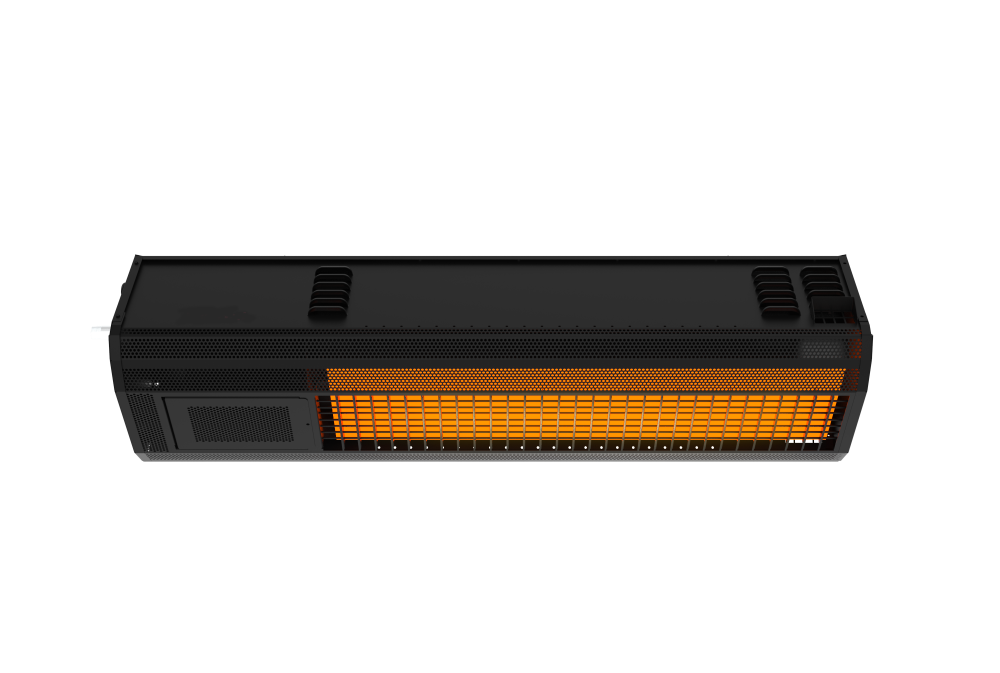

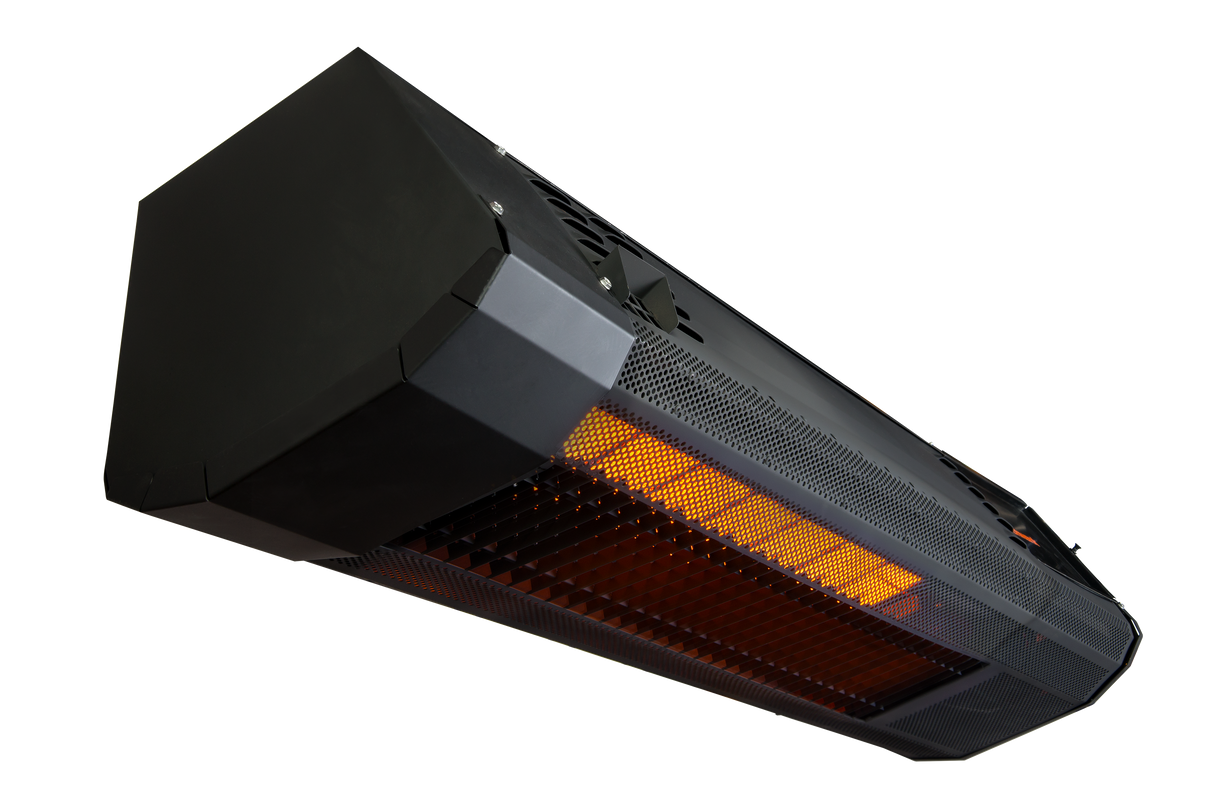

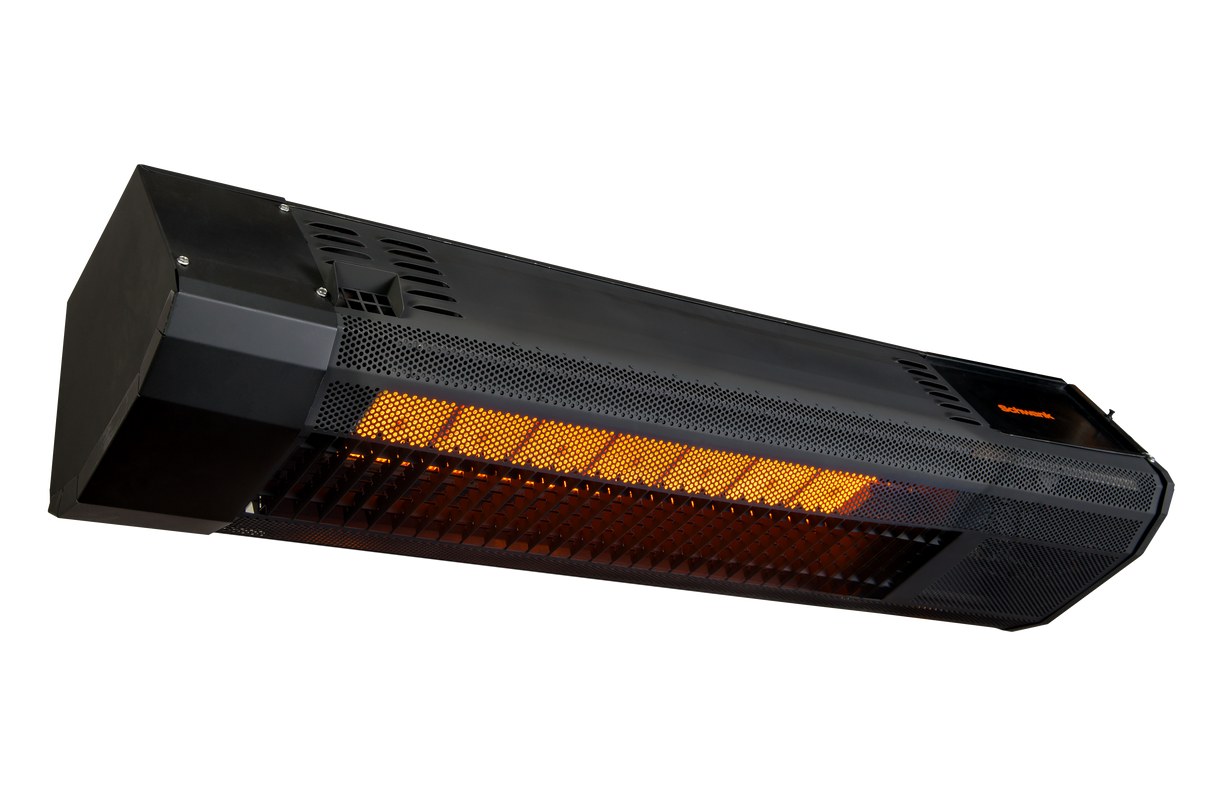

Schwank supremeSchwank 2313 Marine Grade Stainless Steel Patio Heater MO-2313

Schwank supremeSchwank 2313 Marine Grade Stainless Steel Patio Heater MO-2313

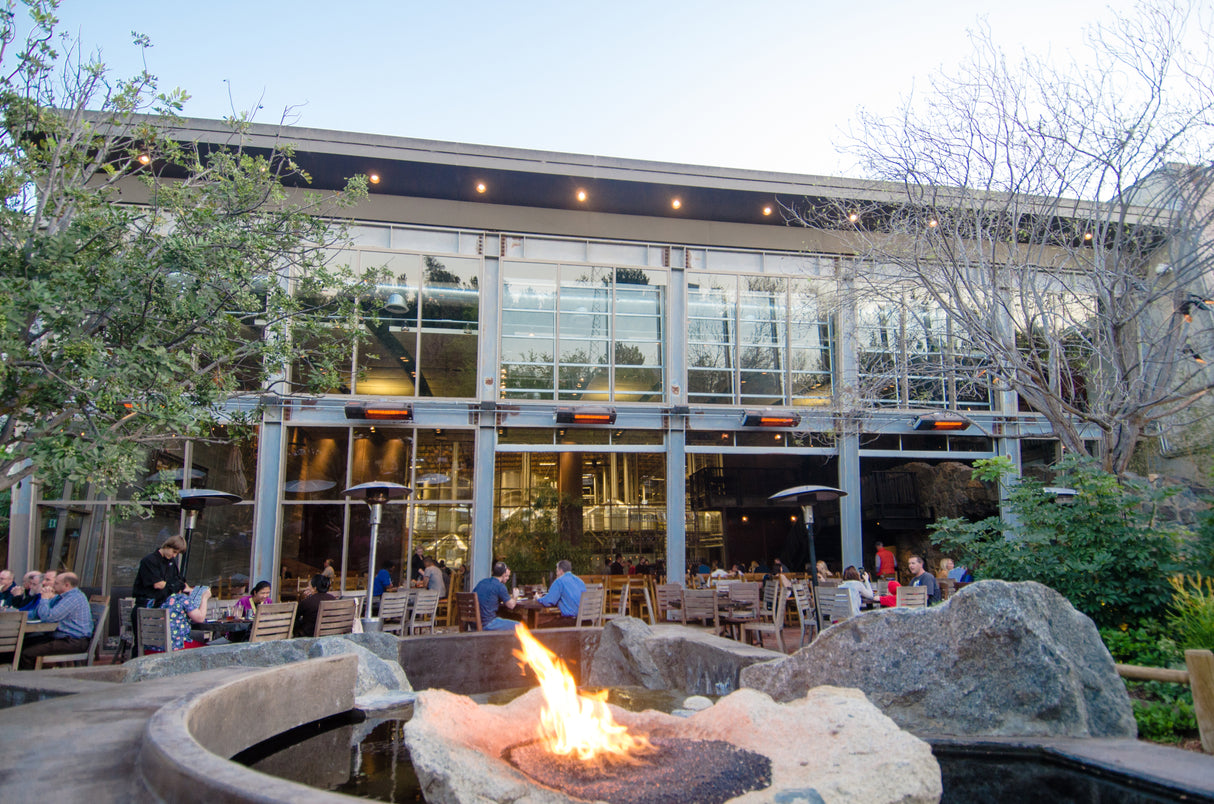

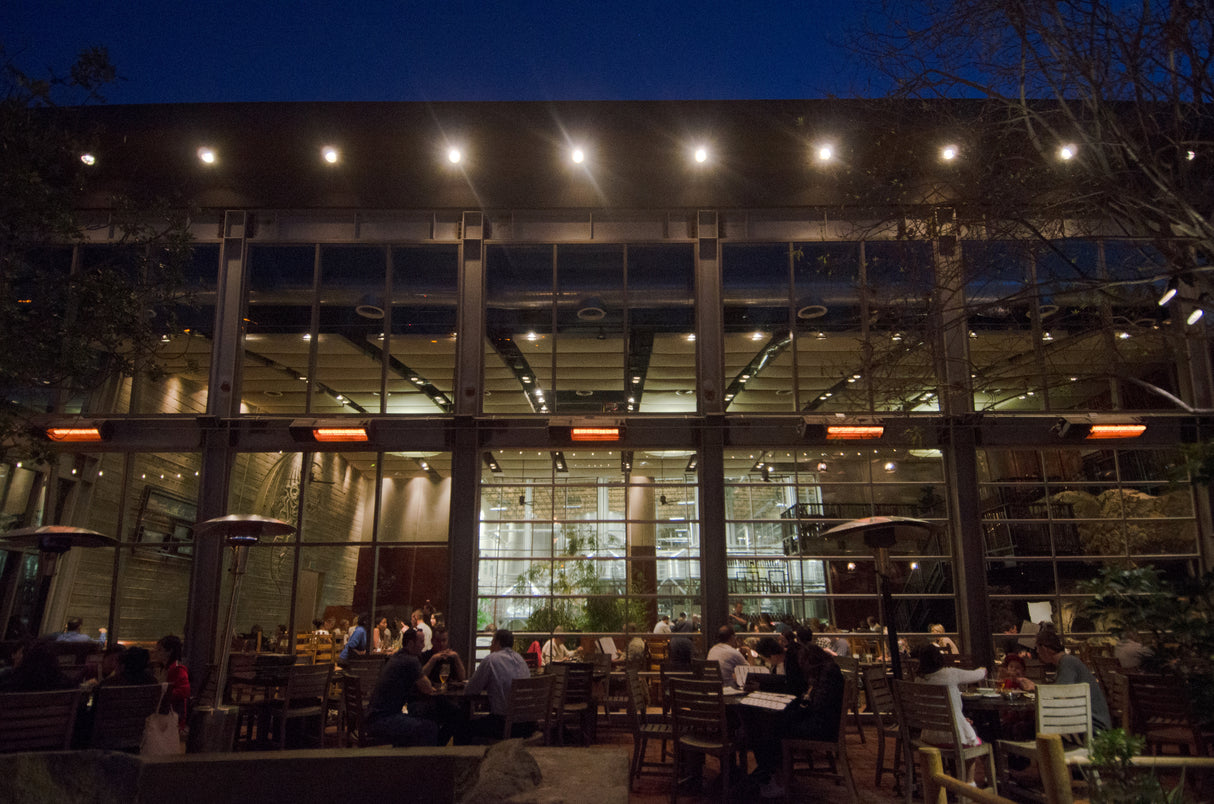

Heating your outdoor patio is essential for any restaurant owner looking to maximize profits. By creating a comfortable outdoor environment restaurant owners can benefit from additional seats in the colder months of the year. The supremeSchwank allows restaurant owners to create a comfortable outdoor atmosphere for their customers allowing them to stay longer and spend more.

The supremeSchwank is finished in a sleek black that is attractive but unassuming.  The unit can be mounted either from the ceiling, wall, or post mount and can be tilted at an angle to direct the heat.

Product Features

Features

• Made with 316 Marine Grade stainless steel to prevent rusting
• 35,000 BTU/HR
• 43.5” heater length
• Single-stage Mode
• UL Certified
• An attractive black finish allows the heater to blend seamlessly into the structure
• Overhead mounting leaves more space for seating and keeps aisles clear

• Black emissive coating and weather-resistant housing
• Ideal for low clearances with an insulated cabinet

• Flexible Mounting Options include wall, ceiling, and post-mount. As opposed to free-standing patio heaters, this heater's overhead mounted design frees up space in aisles to allow more room for seating and foot traffic. Insulated cabinet, means you can mount much closer then others.
• Efficient, Clean Direct Infrared Heating Performance. Provides high-intensity heat, with a quick ramp-up time and energy-efficient heat distribution
• Perfect for restaurant, hospitality, and retail applications.
• 3-year comprehensive warranty on the ceramic burner
• 3-year warranty coverage on the other heater components

Specifications

*Information below is intended only as a reference and should not be used when installing equipment. Please ensure you locate the most recent instruction manual for accurate and up to date information.

Accessories

These accessories are sold separately.

Flexible Gas Connector

	Black Finish Stainless Steel Flexible Gas Connector 3/8” x 24”
	Stainless Steel Flexible Gas Connector 1/2” x 24”

Mounting Options

	Wall Mount Bracket
	Pole Mount Bracket
	Wall Mount Arm Kit
	Universal Mount Kit

Wireless Control for Single-stage Heaters

	Remote Control Receiver Kit field installs in burner: REQUIRED - Order one for each heater - High-intensity or Tube type
	Hand Set Control (four On/Off buttons): REQUIRED - Order one for every four zones: a zone is 1 or more heaters - Control up to 4 individual heaters or up to 4 zones
	Wireless Remote Control Keypad Transmitter: OPTIONAL - JP-1236-HS Required for master code programming - Control up to four patio zones - 3 Zones with unique 4 digit pin & 1 zone with direct push button - Weather resistant: Outdoor or indoor installation

Patio Panel - Central Control of Single-Stage Heater Systems

▪ Central/Remote control of singlestage heater systems ▪ patioPanel and switches have 24 volt capacity ▪ Control up to 12 heaters at a time ▪ For best comfort control, assign one heater to each patioPanel switch ▪ Easy to use and configure Models Available: PCP-4 (Up to 4 heaters), PCP-8 (Up to 8 heaters), PCP-12 (Up to 12 heaters) *24 Volt transformer not included

Zone Transformers 24Vac

Notes:
1. On a single heater use one 40 VA transformer.
2. On a zone with multiple heaters, use a transformer sized at 40 VA per first heater and a 20 VA per each additional heater. The sum total will be the required Transformer capacity. If the total VA exceeds one transformer capacity select the next higher VA rated transformer.

Product Manuals

Owner's Manual

Guideline Specs

Universal Mounting Kit Instructions

Arm Wall Mounting Kit Instructions

Wall Mounting Kit Instructions

Post Mounting Kit Instructions

Patio Heater Coverage Area
