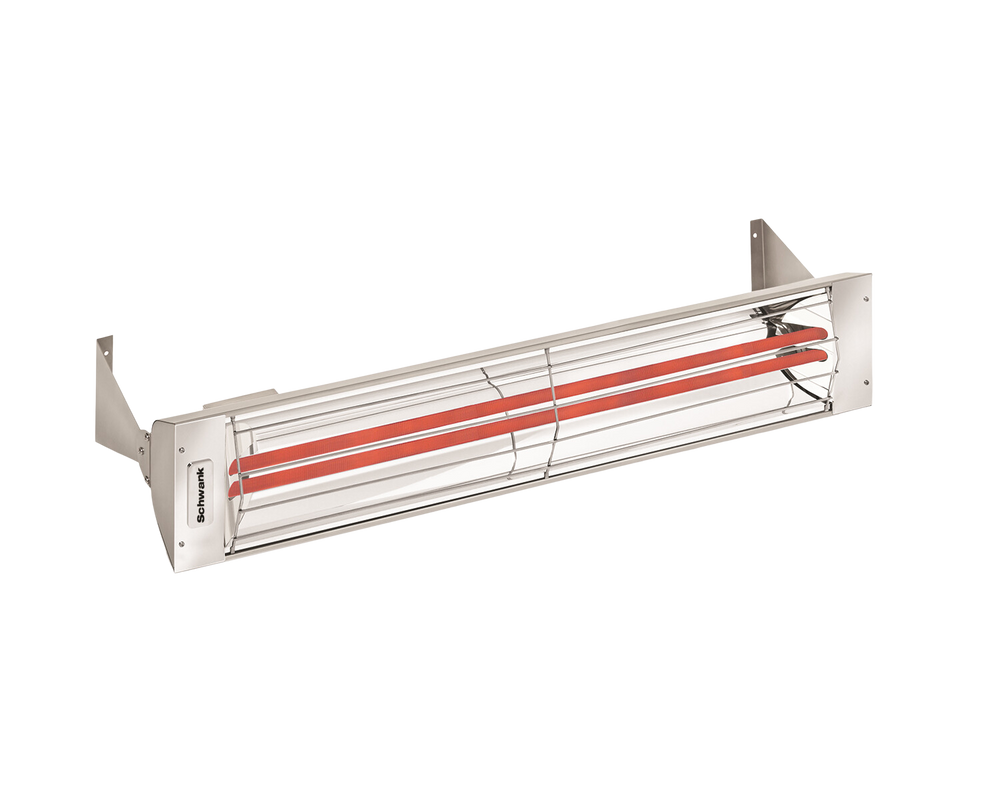

Schwank 33" electricSchwank 3000W Electric IR Indoor/Outdoor Heater ESD-3033

Schwank 33" electricSchwank 3000W Electric IR Indoor/Outdoor Heater ESD-3033

With smaller, sleeker profiles, electricSchwank heating systems offer a streamlined, yet effective heating solution for any indoor or outdoor space. They are available in a range of sizes, wattages, and voltages that can provide appropriate warmth to any indoor or outdoor area, from a small room to an expansive open-air commercial space.

Product Features

ESD-3033 Features:

• 3000 Watts
• Available in 208V and 240V
• 33" Heater Length
• Dual Element Heater
• Double bulb-this comes with a 2-stage feature for a high or low heat setting.
• Available in a brushed stainless steel finish, along with a variety of standard color options [custom colors have a longer lead time]
• Light emitted is easy on your eyes.
• As opposed to free-standing patio heaters, this heater's overhead mounted design frees up space in aisles to allow more room for seating and foot traffic. Insulated cabinet, means you can mount much closer then others.
• Efficient, Clean Direct Infrared Heating Performance
• Perfect for restaurant, hospitality, and retail applications.

Specifications

Accessories

Flush Mount or Recessed Mount Frame

Two-stage Controls

Schwank Two Stage Controls allow you to control each heating element of your ElectricSchwank dual bulb heater. Turn each bulb on or off by flipping a switch. Flipping one switch gives half the power capability and flipping both on provides full power capability, resulting in a high and low heat setting. Each heater requires a dedicated switch.

• Designed for use with dual bulb ESD heaters ONLY. (Ability to turn each bulb on and off independently).

• Range 120/277 VAC [20 amps max per switch]

Single Duplex	Dual Duplex

Zone Analog Controller

The ability to adjust heating intensity. All Controllers are NEMA 12 RATED, and can be exposed to mist, but not direct rain. Each Intensity Control Knob can control a maximum of three relays in the Relay Panel.

Solid State Relay Panel

The Solid State Relay Panel and Zone Analog Controller work together. Solid state relay panels are used with analog controllers to power and operate electricSchwank heaters of all sizes. They provide a single point power connection and also allow for intensity adjustment. All Relay Panels are NEMA 4 RATED, and completely weather resistant. Maximum of 9,000 watts @ 240V or 8,000 watts @ 208V per relay.

Home Management Relay Panel

Integrate electricSchwank heaters directly into your home management system. All Relay Panels are NEMA 4 RATED, and completely weather resistant. Note: Requires 0-10V DC Signal.

Electromechanical Relay Package

Schwank offers a wide range of custom control options in our industry to meet the needs of any residential or commercial application. The Electromechanical Relay (EMR) package allows you to install and control your heaters using any 24/120V thermostat or our TC Plus controller. It also provides you the capability to control one or more heaters in a specified zone (Zone Heating).

This package includes NEMA 4 rated enclosure kit and appropriate relay depending on the number of heater amp draw.

Note: All electrical parts will be shipped loose and the wiring should be completed in the field by an authorized electrician/contractor. It should be approved by the local jurisdiction

	Control Panel Enclosure Kit - NEMA 4 RATED Kit Includes: 1 x Enclosure - NEMA 4 RATED 1 x Terminal Block 1 x Transformer - 40VA
	Electromechnical Relay (EMR) 1. Each relay can handle up to 3 heaters 2. Each control panel (enclosure) fits maximum of 2 relays 3. Please refer to the table below to select the appropriate relay size

Product Manuals

Owner's Manual

Flush Mount Installation

Heater Selection Guide

Color Options
